Sequences

Quick actions

Table view (33 sequence regions)

Original order	Accession	Bit score	Type	Start	End	Description	Species
0	CP000626.1	N/A	seed	331,571	331,760	Vibrio cholerae O395 chromosome 1, complete genome.	Vibrio cholerae O395
1	ABCH01000001.1	N/A	seed	19,775	19,585	Vibrio shilonii AK1 1103207002036, whole genome shotgun sequence.	Vibrio shilonii AK1
2	AAND01000001.1	N/A	seed	379,408	379,215	Vibrio sp. MED222 1099517005441, whole genome shotgun sequence.	Vibrio sp. MED222
3	AAZW01000001.1	N/A	seed	161,990	161,797	Vibrionales bacterium SWAT-3 1101732140681, whole genome shotgun sequence.	Vibrionales bacterium SWAT-3
4	AAMR01000001.1	N/A	seed	281,169	280,976	Vibrio splendidus 12B01 1099451319047, whole genome shotgun sequence.	Vibrio splendidus 12B01
5	AAWP01000001.1	N/A	seed	1,050	855	Vibrio harveyi HY01 gcontig_1104549817909, whole genome shotgun sequence.	Vibrio harveyi HY01
6	AAKK02000017.1	N/A	seed	55,451	55,647	Vibrio sp. Ex25 gcontig_1102407882392, whole genome shotgun sequence.	Vibrio sp. Ex25
7	ACCV01000131.1	N/A	seed	51,068	50,879	Vibrio parahaemolyticus 16 ctg_1108854221821, whole genome shotgun sequence.	Vibrio parahaemolyticus 16
8	BA000038.2	N/A	seed	471,144	471,335	Vibrio vulnificus YJ016 DNA, chromosome II, complete sequence.	Vibrio vulnificus YJ016
9	AAWQ01000001.1	N/A	seed	189,388	189,583	Vibrio parahaemolyticus AQ3810 gcontig_1104296536336, whole genome shotgun sequence.	Vibrio parahaemolyticus AQ3810
0	BA000032.2	211.40	full	1,469,059	1,468,864	Vibrio parahaemolyticus RIMD 2210633 DNA, chromosome 2, complete sequence.	Vibrio parahaemolyticus RIMD 2210633
1	LMXU01000032.1	190.20	full	504,290	504,482	LMXU01000032.1 Vibrio toranzoniae strain Vb 10.8 Contig_031, whole genome shotgun sequence	Vibrio toranzoniae
2	LHPJ01000008.1	177.00	full	54,167	53,974	Vibrio nereis strain DSM 19584 contig0008, whole genome shotgun sequence.	Vibrio nereis
3	JMCG01000001.1	175.40	full	2,861,426	2,861,234	JMCG01000001.1 Vibrio navarrensis strain ATCC 51183 contig1, whole genome shotgun sequence	Vibrio navarrensis
4	FNDD01000011.1	172.80	full	59,094	59,286	FNDD01000011.1 Vibrio xiamenensis strain CGMCC 1.10228 genome assembly, contig: Ga0070553_111, whole genome shotgun sequence	Vibrio sp. G21
5	AE003853.1	171.70	full	893,460	893,271	Vibrio cholerae O1 biovar eltor str. N16961 chromosome II, complete sequence.	Vibrio cholerae O1 biovar El Tor str. N16961
6	BBMT01000003.1	171.10	full	13,140	13,329	Vibrio maritimus DNA, contig: contig00003, strain: JCM 19240.	Vibrio sp. R-40493
7	JXXV01000007.1	170.70	full	95,896	96,086	JXXV01000007.1 Vibrio galatheae strain S2757 contig0007, whole genome shotgun sequence	Vibrio sp. S2757
8	WXWF01000081.1	169.90	full	42,894	42,702	WXWF01000081.1 Vibrio sp. V28_P6S34P95 scaffold8_size56994, whole genome shotgun sequence	Vibrio sp. V28_P6S34P95
9	LKHS01000001.1	169.30	full	273,115	273,303	LKHS01000001.1 Vibrio furnissii strain S0821 contig0001, whole genome shotgun sequence	Vibrio furnissii
10	BATJ01000005.1	169.20	full	230,379	230,183	Vibrio proteolyticus NBRC 13287 DNA, contig: VPR01S05.	Vibrio proteolyticus NBRC 13287
11	OANU01000028.1	162.50	full	73,190	73,379	OANU01000028.1 Vibrio thalassae strain CECT8203 genome assembly, contig: 0028, whole genome shotgun sequence	Vibrio thalassae
12	AJYW02000178.1	157.30	full	15,481	15,668	Vibrio genomosp. F6 str. FF-238 FF-238_contig_382, whole genome shotgun sequence.	Vibrio genomosp. F6 str. FF-238
13	CP049332.1	155.90	full	690,922	691,112	CP049332.1 Vibrio ziniensis strain ZWAL4003 chromosome 2, complete sequence	Vibrio ziniensis
14	JAKRRX010000165.1	152.90	full	3,213	3,017	JAKRRX010000165.1 Vibrio paucivorans strain DBSS07 165, whole genome shotgun sequence	Vibrio paucivorans
15	BATL01000058.1	145.90	full	16,373	16,567	Vibrio azureus NBRC 104587 DNA, contig: VAZ01S058.	Vibrio azureus NBRC 104587
16	MAJZ01000488.1	143.00	full	313	119	Vibrio genomosp. F10 strain 9CSC122 9CSC122_contig_366, whole genome shotgun sequence.	Vibrio sp. F10
17	JAJNNZ010000003.1	142.20	full	196,623	196,807	JAJNNZ010000003.1 Vibrio gelatinilyticus strain ZSDZ34 3, whole genome shotgun sequence	Vibrio gelatinilyticus
18	JTKH01000024.1	130.90	full	872,178	872,367	JTKH01000024.1 Vibrio renipiscarius strain DCR 1-4-2 Contig24, whole genome shotgun sequence	Vibrio renipiscarius
19	MCUV01000024.1	125.00	full	116,292	116,484	MCUV01000024.1 Vibrio sp. 10N.286.49.B3 10N.286.49.B3_contig_3, whole genome shotgun sequence	Vibrio sp. 10N.286.49.B3
20	CP045351.1	123.00	full	1,155,020	1,155,211	CP045351.1 Vibrio aquimaris strain THAF100 plasmid pTHAF100_a, complete sequence	Vibrio aquimaris
21	FO203527.1	96.60	full	1,661,322	1,661,124	Vibrio nigripulchritudo str. SFn1 chromosome, complete genome.	Vibrio nigripulchritudo
22	CP047476.1	93.70	full	1,540,272	1,540,497	CP047476.1 Vibrio astriarenae strain HN897 chromosome 2, complete sequence	Vibrio astriarenae

Alignment

There are various ways to view or download the seed alignments that we store. You can use a sequence viewer to look at them, or you can look at a plain text version of the sequence in a variety of different formats. More...

View options

You can view Rfam seed alignments in your browser in various ways. Choose the viewer that you want to use and click the "View" button to show the alignment in a pop-up window.

Formatting options

You can view or download Rfam seed alignments in several formats. Check either the "download" button, to save the formatted alignment, or "view", to see it in your browser window, and click "Generate".

Download

Download a gzip-compressed, Stockholm-format file containing the seed alignment for this family. You may find RALEE useful when viewing sequence alignments.

Submit a new alignment

We're happy receive updated seed alignments for new or existing families. Submit your new alignment and we'll take a look.

Secondary structure

This section shows a variety of different secondary structure representations for this family. More...

In this page you can view static images showing the secondary structure of this family using a variety of colouring schemes:

Conservation (cons): this plot colours each character by how well conserved it is. A site with 100% sequence conservation is coloured red, 0% is violet.

Covariation (cov): this plot colours each base-pair according to how much the corresponding nucleotides are co-varying. A base-pair position at which every pair of nucleotides is co-variant with respect to every other pair in the alignment gets a score of 2 and is coloured red. Conversely, a base-pair position at every pair is anti-co-variant with respect to every other pair (e.g. lots of mutations to non-canonical pairs) gets a score of -2 and is coloured violet. Further information on this metric can be found in this document.

Sequence entropy (ent): this plot colours each character by how under- or over-represented the residues at the site are. Sites where one or more nucleotides are over-represented while the other nucleotides are either non-existent or near the background frequencies, receive positive scores; sites where all the nucleotides are under-represented receive negative scores. Further information on this metric can be found in this document.

Fraction of canonical basepairs (fcbp): this plot colours each base-pair by the percentage of canonical basepairs (A:U, C:G, G:U) which are found in the corresponding position in the alignment. A pair of sites with 100% canonical pairs is coloured red, a site with 0% is violet.

Maximum parse of the covariance model (maxcm): this plot takes the covariance model for the family and generates the sequence with the maximum possible score for that model. Each character is coloured by how many bits it contributes to the total score.

Sequence: for most of the above cases, the representative sequence used for the backbone is the most informative sequence (MIS). Any residue that has a higher frequency than than the background frequency is projected into the IUPAC redundancy codes.

Normal: this plot simply colours each stem loop

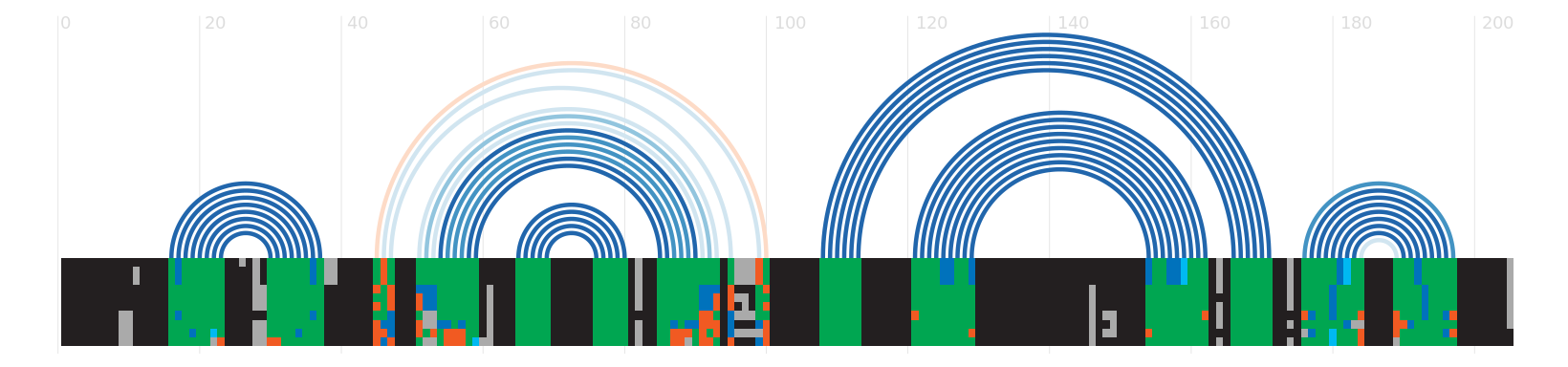

R-chie (rchie): arc diagrams showing secondary structure, calculated using the R-chie package. The consensus secondary structure is visualized as arc diagrams on top of each diagram, where a basepair in an arc, connect two columns of the block of sequences below. The block of sequences below represent the multiple sequence alignment of the Rfam seed, where each sequence is a horizontal strip. Sequences in the alignments are ordered so sequences that best fit the structure are on top, and those that do not fit as well are towards the bottom. For seed alignments for over 500 sequences, 500 random sequences were chosen. Rfam entries without sturcture have a blank plot. Colour information can be found on the R-chie FAQ.

You can also view the secondary structure in the VARNA applet. The applet is shown in a separate pop-up window.

Acknowledgements

The bulk of the code for generating these graphics was kindly supplied by Andreas Gruber and Ivo Hofacker. The statistics were implemented by Rfam.

The VARNA applet is developed by Yann Ponty et al:

VARNA: Interactive drawing and editing of the RNA secondary structure: Kévin Darty, Alain Denise and Yann Ponty Bioinformatics (2009) 25:1974-1975

The R-chie arc diagrams were calculated using R-chie:

R-chie: a web server and R package for visualizing RNA secondary structures: Daniel Lai, Jeff R. Proctor, Jing Yun A. Zhu, and Irmtraud M. Meyer Nucleic Acids Research (2012) first published online March 19, 2012

You can view the secondary structure of the family using the VARNA applet. You can see more information about VARNA iself here.

Current Rfam structure

R-scape optimised structure

Colours
Statistically significant basepair with covariation
97% conserved nucleotide
90% conserved nucleotide
75% conserved nucleotide
50% conserved nucleotide
Nucleotides
R: A or G
Y: C or U

Tip: The diagrams are interactive:
you can pan and zoom to see more details
or hover over nucleotides and basepairs.

R-scape is a method for testing whether covariation analysis supports the presence of a conserved RNA secondary structure. This page shows R-scape analysis of the secondary structure from the Rfam seed alignment and a new structure with covariation support that is compatible with the same alignment.

To find out more about the method, see the R-scape paper by Rivas et al., 2016. The structures are visualised using R2R.

Move your mouse over the image to show details and click to show full image.

Arc colours
100% canonical basepair
50%
0%
Nucleotide colours
Valid basepairing
Two-sided covariation
One-sided covariation
Invalid
Unpaired
Gap
Ambiguous

Species distribution

Sunburst
Tree

Sunburst controls

Hide

Lineage

Move your mouse over the main tree to show the lineage of a particular node.

You can move this pane by dragging it.

Weight segments by...

number of sequences
number of species

Change the size of the sunburst

Small

Large

Colour assignments

Archea	Eukaryota
Bacteria	Other sequences
Viruses	Unclassified
Viroids	Unclassified sequence

Selections

Click on a node to select that node and its sub-tree.

Clear selection

This visualisation provides a simple graphical representation of the distribution of this family across species. You can find the original interactive tree in the adjacent tab. More...

This chart is a modified "sunburst" visualisation of the species tree for this family. It shows each node in the tree as a separate arc, arranged radially with the superkingdoms at the centre and the species arrayed around the outermost ring.

How the sunburst is generated

The tree is built by considering the taxonomic lineage of each sequence that has a match to this family. For each node in the resulting tree, we draw an arc in the sunburst. The radius of the arc, its distance from the root node at the centre of the sunburst, shows the taxonomic level ("superkingdom", "kingdom", etc). The length of the arc represents either the number of sequences represented at a given level, or the number of species that are found beneath the node in the tree. The weighting scheme can be changed using the sunburst controls.

In order to reduce the complexity of the representation, we reduce the number of taxonomic levels that we show. We consider only the following eight major taxonomic levels:

superkingdom
kingdom
phylum
class
order
family
genus
species

Colouring and labels

Segments of the tree are coloured approximately according to their superkingdom. For example, archeal branches are coloured with shades of orange, eukaryotes in shades of purple, etc. The colour assignments are shown under the sunburst controls. Where space allows, the name of the taxonomic level will be written on the arc itself.

As you move your mouse across the sunburst, the current node will be highlighted. In the top section of the controls panel we show a summary of the lineage of the currently highlighed node. If you pause over an arc, a tooltip will be shown, giving the name of the taxonomic level in the title and a summary of the number of sequences and species below that node in the tree.

Anomalies in the taxonomy tree

There are some situations that the sunburst tree cannot easily handle and for which we have work-arounds in place.

Missing taxonomic levels

Some species in the taxonomic tree may not have one or more of the main eight levels that we display. For example, Bos taurus is not assigned an order in the NCBI taxonomic tree. In such cases we mark the omitted level with, for example, "No order", in both the tooltip and the lineage summary.

Unmapped species names

The tree is built by looking at each sequence in the full alignment for the family. We take the name of the species given by UniProt and try to map that to the full taxonomic tree from NCBI. In some cases, the name chosen by UniProt does not map to any node in the NCBI tree, perhaps because the chosen name is listed as a synonym or a misspelling in the NCBI taxonomy.

So that these nodes are not simply omitted from the sunburst tree, we group them together in a separate branch (or segment of the sunburst tree). Since we cannot determine the lineage for these unmapped species, we show all levels between the superkingdom and the species as "uncategorised".

Sub-species

Since we reduce the species tree to only the eight main taxonomic levels, sequences that are mapped to the sub-species level in the tree would not normally be shown. Rather than leave out these species, we map them instead to their parent species. So, for example, for sequences belonging to one of the Vibrio cholerae sub-species in the NCBI taxonomy, we show them instead as belonging to the species Vibrio cholerae.

Too many species/sequences

For large species trees, you may see blank regions in the outer layers of the sunburst. These occur when there are large numbers of arcs to be drawn in a small space. If an arc is less than approximately one pixel wide, it will not be drawn and the space will be left blank. You may still be able to get some information about the species in that region by moving your mouse across the area, but since each arc will be very small, it will be difficult to accurately locate a particular species.

Tree controls

Hide

The tree shows the occurrence of this RNA across different species. More...

Species trees

For the majority of our families we provide an interactive tree representation, which allows you to select specific nodes in the tree and view the selected sequences as an alignment.

Unfortunately we have found that there are problems viewing the interactive tree when the it becomes larger than a certain limit. Furthermore, we have found that Internet Explorer can become unresponsive when viewing some trees, regardless of their size. We therefore show a text representation of the species tree when the size is above a certain limit or if you are using Internet Explorer to view the site.

If you are using IE you can still load the interactive tree by clicking the "Generate interactive tree" button, but please be aware of the potential problems that the interactive species tree can cause.

Interactive tree

For all of the sequence regions (RNA annotations) in a full alignment, we count the total number that are found in the alignment. This total is shown in the purple box.

We also count the number of unique sequences on which each RNA is found, which is shown in green. Note that an RNA annotation may appear multiple times on the same sequence, leading to the difference between these two numbers (think of repeats like tRNA where the same RNA is found in tandem along a single sequence).

Finally, we group sequences from the same organism according to the NCBI code that is assigned by UniProt, allowing us to count the number of distinct sequences on which the RNA is found. This value is shown in the pink boxes.

We use the NCBI species tree to group organisms according to their taxonomy and this forms the structure of the displayed tree. Note that in some cases the trees are too large (have too many nodes) to allow us to build an interactive tree. In these few cases if you do really need to see a representation of the tree for this entry, please contact us and we will be happy to discuss ways to generate it for you.

You can use the tree controls to manipulate how the interactive tree is displayed:

show/hide the summary boxes
highlight species that are represented in the seed alignment
expand/collapse the tree or expand it to a given depth
select a sub-tree or a set of species within the tree and view them graphically or as an alignment
save a plain text representation of the tree

Please note: for large trees this can take some time. While the tree is loading, you can safely switch away from this tab but if you browse away from the family page entirely, the tree will not be loaded.

Trees

This page displays the predicted phylogenetic tree for the alignment. More...

Note: You can also download the data file for the seed tree.

Motif matches

There are 6 motifs which match this family.

This section shows the Rfam motifs that match sequences within the seed alignment of this family. Users should be aware that the motifs are structural constructs and do not necessarily conform to taxonomic boundaries in the way that Rfam families do. More...

Original order	Motif Accession	Motif Description	Number of Hits	Fraction of Hits	Sum of Bits
7	RM00004	CRC binding motif	6	0.600	97.2
7	RM00008	GNRA tetraloop	7	0.700	93.3
7	RM00022	Rho independent terminator 1	10	1.000	256.9
7	RM00023	Rho independent terminator 2	10	1.000	279.2
7	RM00024	T-loop	4	0.400	39.3
7	RM00030	U-turn motif	5	0.500	61.9

References

This section shows the database cross-references that we have for this Rfam family.

Literature references

Davis BM, Waldor MK Mol Microbiol. 2007;65:373-385. RNase E-dependent processing stabilizes MicX, a Vibrio cholerae sRNA. PUBMED:17590231

External database links

Sequence Ontology:

SO:0000370 (small_regulatory_ncRNA);

Curation and family details

This section shows the detailed information about the Rfam family. We're happy to receive updated or improved alignments for new or existing families. Submit your new alignment and we'll take a look.

Curation

Seed source

Gardner PP

Structure source

Predicted; CMfinder

Type

Gene; sRNA;

Author

Gardner PP ORCID logo

, Moore B ORCID logo

Alignment details

Alignment	Number of sequences
full	23
seed	10

Model information

Build commands

cmbuild -F CM SEED

cmcalibrate --mpi CM

Search command

cmsearch --cpu 4 --verbose --nohmmonly -T 25.27 -Z 2958934 CM SEQDB

Gathering cutoff

75.0

Trusted cutoff

93.7

Noise cutoff

71.1

Covariance model

Download

Family: MicX (RF01808)

Description: MicX Vibrio cholerae sRNA

Summary

Wikipedia annotation Edit Wikipedia article

Before you edit for the first time

Things you should know

How your contribution will be recorded

Information we would like to see added

Does Rfam agree with the content of the Wikipedia entry ?

Contact us

Sequences

Quick actions

Table view (33 sequence regions)

Alignment

Viewing

Downloading

View options

Formatting options

Download

Submit a new alignment

Secondary structure

Acknowledgements

Current Rfam structure

R-scape optimised structure

Species distribution

Sunburst controls

Lineage

Weight segments by...

Change the size of the sunburst

Colour assignments

Selections

Currently selected:

How the sunburst is generated

Colouring and labels

Anomalies in the taxonomy tree

Missing taxonomic levels

Unmapped species names

Sub-species

Too many species/sequences

Tree controls

Annotation

Download tree

Selected sequences

Species trees

Interactive tree

Trees

Motif matches

References

Literature references

External database links

Curation and family details

Curation

Model information

Rfam is part of the ELIXIR infrastructure
